Equivalent fractions with models

Click problems to add them to your worksheet.

5201923
A large pizza is cut into \(8\) equal slices. Lucas eats \(2\) slices, Sarah eats \(1\) slice, and the rest is left for their parents. Write the fraction of the pizza eaten by Lucas, the fraction eaten by Sarah, and the fraction left for their parents.

Hints

- How many equal slices make the whole pizza? - A fraction tells how many equal parts of a whole are being described. - How many slices remain after Lucas and Sarah eat theirs? - Can any fraction be written in an equivalent simpler form?

Solution

1. The whole pizza has \(8\) equal slices. 2. Lucas eats \(2\) of the \(8\) slices, so his fraction is \(\frac{2}{8} = \frac{1}{4}\). 3. Sarah eats \(1\) of the \(8\) slices, so her fraction is \(\frac{1}{8}\). 4. The parents receive \(8 - 2 - 1 = 5\) slices, so their fraction is \(\frac{5}{8}\).

Answer

Lucas: \(\frac{1}{4}\) (or \(\frac{2}{8}\)) Sarah: \(\frac{1}{8}\) Parents: \(\frac{5}{8}\)
5355543
A paper strip is divided into equal sections, as shown in the figure. a) How many sections are in the strip altogether? b) How many sections are shaded? c) What fraction of the strip is shaded? d) What fraction of the strip is unshaded?
Figure for problem 535554

Hints

- Count all the sections to find the denominator. - The number of shaded sections gives the numerator for the shaded fraction. - For the unshaded fraction, determine how many sections remain.

Solution

1. Count all the sections: the strip has \(6\) equal sections. 2. Count the shaded sections: \(2\) sections are shaded. 3. The shaded fraction is \(\frac{2}{6} = \frac{1}{3}\). 4. The number of unshaded sections is \(6 - 2 = 4\). 5. The unshaded fraction is \(\frac{4}{6} = \frac{2}{3}\).

Answer

a) \(6\) b) \(2\) c) \(\frac{2}{6}\), or \(\frac{1}{3}\) d) \(\frac{4}{6}\), or \(\frac{2}{3}\)
5358693

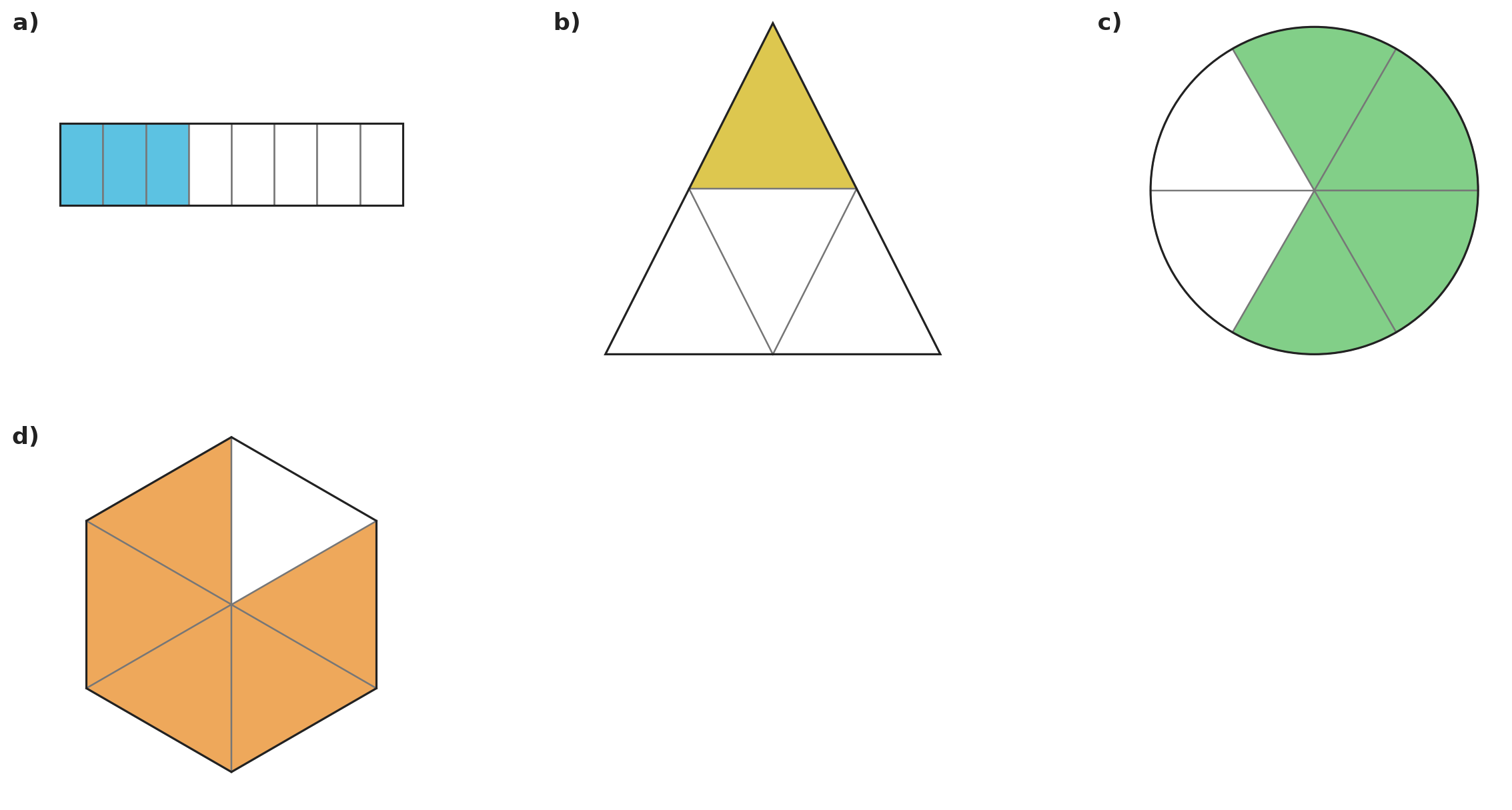

Look at the four figures. For each figure, determine: 1. What fraction of the figure is shaded? 2. What fraction of the figure is unshaded? Write each answer as a fraction.
Figure for problem 535869

Hints

- Count all equal parts in each figure to determine its denominator. - Count the shaded parts for the shaded numerator. - The unshaded numerator comes from the equal parts that remain. - Check that the shaded and unshaded counts together make the whole figure.

Solution

1. Figure a) has \(8\) equal parts, with \(3\) shaded. The shaded fraction is \(\frac{3}{8}\), and the unshaded fraction is \(\frac{5}{8}\). 2. Figure b) has \(4\) equal parts, with \(1\) shaded. The shaded fraction is \(\frac{1}{4}\), and the unshaded fraction is \(\frac{3}{4}\). 3. Figure c) has \(6\) equal parts, with \(4\) shaded. The shaded fraction is \(\frac{4}{6}\), and the unshaded fraction is \(\frac{2}{6}\). 4. Figure d) has \(6\) equal parts, with \(5\) shaded. The shaded fraction is \(\frac{5}{6}\), and the unshaded fraction is \(\frac{1}{6}\).

Answer

a) shaded: \(\frac{3}{8}\); unshaded: \(\frac{5}{8}\) b) shaded: \(\frac{1}{4}\); unshaded: \(\frac{3}{4}\) c) shaded: \(\frac{4}{6}\); unshaded: \(\frac{2}{6}\) d) shaded: \(\frac{5}{6}\); unshaded: \(\frac{1}{6}\)
5401073
Use the bar model. Regroup its small equal parts into \(2\) equal large parts. What fraction of the bar is shaded when it is named in halves?
Figure for problem 540107

Hints

- Count the small equal parts and the shaded parts in the model. - Think about making two equal groups from all of the small parts. - Decide how many of those two groups are completely shaded.

Solution

1. The bar has \(6\) equal parts, with \(3\) shaded. 2. Regrouping the \(6\) parts into \(2\) equal large parts puts \(3\) small parts in each half. 3. The shaded \(3\) sixths fill \(1\) of the \(2\) large parts. 4. Therefore, \(\frac{3}{6}=\frac{1}{2}\).

Answer

\(\frac{1}{2}\) of the bar is shaded.
5401183
Use the two same-size bars. Do they show the same shaded amount? Write an equation using the fractions shown by the models.
Figure for problem 540118

Hints

- Count the equal parts and shaded parts in each bar. - Compare where the shaded region ends in the two same-size bars. - Write the two fractions as an equality if the shaded lengths match.

Solution

1. Bar a) has \(1\) of \(4\) equal parts shaded, so it shows \(\frac{1}{4}\). 2. Bar b) has \(2\) of \(8\) equal parts shaded, so it shows \(\frac{2}{8}\). 3. The shaded lengths are the same because splitting one fourth into \(2\) equal pieces makes two eighths. 4. Therefore, \(\frac{1}{4}=\frac{2}{8}\).

Answer

Yes. \(\frac{1}{4}=\frac{2}{8}\).
5401213
Use the shaded map model. Then imagine that every original section, shaded and unshaded, is split into \(2\) equal smaller parts. How many small parts would there be in all? How many would be shaded? Write the original and new equivalent fractions.
Figure for problem 540121

Hints

- First read the original fraction from the model. - Think about what happens to every original part when each is split in two. - Count total small parts and shaded small parts after the split.

Solution

1. The model has \(3\) equal sections, with \(1\) shaded, so the original fraction is \(\frac{1}{3}\). 2. Splitting each of the \(3\) sections into \(2\) parts makes \(3\times2=6\) small parts. 3. The one shaded third becomes \(2\) shaded small parts. 4. The new fraction is \(\frac{2}{6}\), so \(\frac{1}{3}=\frac{2}{6}\).

Answer

There would be \(6\) small parts, with \(2\) shaded. \(\frac{1}{3}=\frac{2}{6}\).
5401283
Use the two same-size bar models. How many parts of model b) should be shaded to show the same amount as model a)? Write an equation for the equivalent fractions.
Figure for problem 540128

Hints

- Read the shaded fraction in model a) from its equal parts. - Compare how the same-size whole is partitioned in model b). - Think about how many smaller parts fit inside each shaded part of model a).

Solution

1. Model a) shows \(2\) of \(3\) equal parts shaded, or \(\frac{2}{3}\). 2. Model b) divides the same-size whole into \(6\) equal parts. 3. Splitting each third into \(2\) equal pieces makes \(4\) shaded sixths. 4. Therefore, \(\frac{2}{3}=\frac{4}{6}\).

Answer

Shade \(4\) parts of model b). \(\frac{2}{3}=\frac{4}{6}\).
5402103
The bar model shows a fraction. A fraction with numerator \(6\) is equivalent to the shaded amount. Find its denominator.
Figure for problem 540210

Hints

- First read the shaded fraction from the model. - The numerator must change from the model's shaded-part count to \(6\) without changing the shaded amount. - Whatever happens to each shaded part must also happen to every part of the whole.

Solution

1. The model has \(3\) of \(4\) equal parts shaded, so it shows \(\frac{3}{4}\). 2. To change \(3\) shaded parts into \(6\) shaded parts without changing the amount, split every fourth into \(2\) equal pieces. 3. The whole then has \(8\) equal parts, and \(6\) are shaded. 4. Therefore, \(\frac{3}{4}=\frac{6}{8}\), so the denominator is \(8\).

Answer

The denominator is \(8\), giving \(\frac{6}{8}\).
5402223
Four identical tiles placed end to end cover exactly one half of a strip. Tiles of this size cover the whole strip with no gaps. How many tiles cover the whole strip? Write the covered half as a fraction with numerator \(4\).

Hints

- A whole contains two equal halves. - The second half needs the same number of tiles as the first. - Use the \(4\) covered tiles over the total number of tiles.

Solution

1. The other half needs the same number of tiles. 2. The whole strip needs \(4+4=8\) tiles. 3. Four of the \(8\) tiles cover one half, so the fraction is \(\frac{4}{8}\).

Answer

The whole strip takes \(8\) tiles, and the covered half is \(\frac{4}{8}\).
5355093
Figures a), b), and c) each show a shaded fraction of the same-size whole. Which figure shows a different fraction from the other two? Explain by comparing the fractions.
Figure for problem 535509

Hints

- For each figure, count the equal parts and the shaded parts. - Compare the actual shaded lengths because all three bars represent the same-size whole. - Look for two partitions whose shaded portions end at the same place.

Solution

1. Figure a) shows \(\frac{1}{4}\). 2. Figure b) shows \(\frac{2}{8}\), which is the same amount as \(\frac{1}{4}\). 3. Figure c) shows \(\frac{2}{6}\), which is the same amount as \(\frac{1}{3}\). 4. Figures a) and b) show the same shaded amount, while figure c) shows a different amount.

Answer

Figure c). Figures a) and b) both show \(\frac{1}{4}\) of the same-size whole, while figure c) shows \(\frac{1}{3}\).
5401333

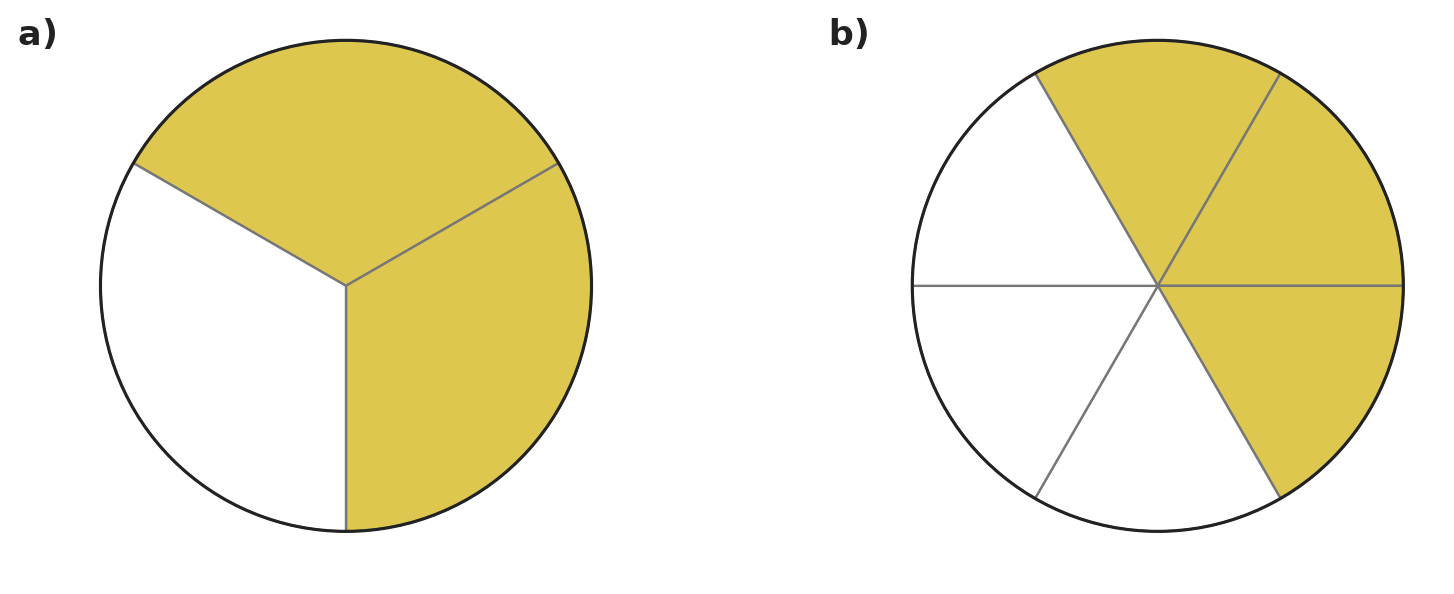

Use models a) and b). Model b) is unfinished. How many additional parts in model b) would need to be shaded so that the two models show the same amount? Write the equivalent fractions after the change.
Figure for problem 540133

Hints

- Name the shaded fraction in each model before changing anything. - Compare where the shaded region ends in the two same-size circles. - Think about how many sixth-size parts cover the same amount as the shaded thirds in model a).

Solution

1. Model a) has \(2\) of \(3\) equal parts shaded, so it shows \(\frac{2}{3}\). 2. Model b) has \(3\) of \(6\) equal parts shaded. 3. The shaded region in model a) reaches through \(4\) sixth-size parts of the same-size circle, so model b) needs \(1\) additional shaded part. 4. After that change, model b) shows \(\frac{4}{6}\), so \(\frac{2}{3}=\frac{4}{6}\).

Answer

One additional part of model b) must be shaded; \(\frac{2}{3}=\frac{4}{6}\).
5401473
Use the grid model. Name the shaded fraction in two ways: first by counting individual cells, then by treating each complete column as one equal part of the whole. Write the equivalence.
Figure for problem 540147

Hints

- Count all equal cells and the shaded cells. - Then look at each vertical column as a larger equal part of the same rectangle. - Check whether both fraction names refer to exactly the same shaded region.

Solution

1. The grid has \(6\) equal cells, with \(4\) shaded, so the cell fraction is \(\frac{4}{6}\). 2. The grid has \(3\) equal columns, with \(2\) complete columns shaded, so the column fraction is \(\frac{2}{3}\). 3. Both fractions describe exactly the same shaded region, so \(\frac{4}{6}=\frac{2}{3}\).

Answer

By cells: \(\frac{4}{6}\) By columns: \(\frac{2}{3}\) \(\frac{4}{6}=\frac{2}{3}\)
5401853
A fourths model has one part shaded. Two eighths models each have two parts shaded: in model B the shaded parts touch, and in model C they are separated. Which eighths models are equivalent to \(\frac{1}{4}\)? Explain.
Figure for problem 540185

Hints

- Count equal shaded parts in each eighths model. - Compare total shaded amount rather than the arrangement. - Decide how many eighths have the size of one fourth.

Solution

1. One fourth has the same total size as two eighths. 2. Both model B and model C shade exactly \(2\) of \(8\) equal parts. 3. The positions of equal shaded parts do not change their total area. 4. Both models show \(\frac{2}{8}=\frac{1}{4}\).

Answer

Both model B and model C are equivalent to \(\frac{1}{4}\). Each shows \(\frac{2}{8}\); whether the shaded eighths touch does not change the amount.
5401883
Use the three same-size bar models. Which two models show equivalent fractions? Explain using their equal parts.
Figure for problem 540188

Hints

- Read the shaded fraction in each model. - Compare where each shaded region ends on the same-size bars. - For a pair that appears to match, explain how one partition can be split into the other partition without changing the shaded amount.

Solution

1. Model a) shows \(\frac{2}{3}\), model b) shows \(\frac{4}{6}\), and model c) shows \(\frac{5}{8}\). 2. The shaded region in models a) and b) ends at the same place on the same-size whole. 3. Each third in model a) can be split into \(2\) equal sixths, so \(2\) shaded thirds become \(4\) shaded sixths. 4. Therefore, \(\frac{2}{3}=\frac{4}{6}\); model c) shows a different shaded amount.

Answer

Models a) and b) are equivalent: \(\frac{2}{3}=\frac{4}{6}\).
5402043
Use models a) and b). Suppose one shaded part in model b) is moved to a different position without adding or removing any shading. Can this make the models equivalent? Explain.
Figure for problem 540204

Hints

- Read the shaded fraction in each model. - Ask what changes, and what stays the same, when a shaded part is only moved. - Compare the total shaded lengths of the same-size bars rather than the positions of individual shaded pieces.

Solution

1. Model a) shows \(\frac{2}{3}\), and model b) shows \(\frac{3}{6}\). 2. Moving a shaded sixth changes its position but not the number of shaded sixths, so model b) still shows \(\frac{3}{6}\). 3. The same-size bars show different shaded lengths: \(\frac{2}{3}\) reaches farther than \(\frac{3}{6}\). 4. Therefore, moving one shaded part cannot make the models equivalent.

Answer

No. Moving a shaded part does not change the total shaded amount, so model b) still shows \(\frac{3}{6}\), which is not equivalent to \(\frac{2}{3}\).
5540463
Use the shaded bar and the number line. ⬛⬛⬛⬜ Which point, \(P\) or \(Q\), represents the same fraction as the shaded bar? Name the fraction shown by the bar, name the fractions at \(P\) and \(Q\), and write an equation for the matching representations.
Figure for problem 554046

Hints

- Count the equal parts in the bar and the parts that are shaded. - On the number line, first determine how many equal spaces make one whole. - Name \(P\) and \(Q\) before deciding which one represents the same amount as the bar.

Solution

1. The bar has \(3\) of \(4\) equal parts shaded, so it represents \(\frac{3}{4}\). 2. The number line from \(0\) to \(1\) has \(8\) equal spaces. Point \(P\) is \(5\) spaces from \(0\), so \(P=\frac{5}{8}\). 3. Point \(Q\) is \(6\) spaces from \(0\), so \(Q=\frac{6}{8}\). 4. Six eighths cover the same amount of one whole as three fourths, so \(\frac{3}{4}=\frac{6}{8}\). Therefore, point \(Q\) matches the shaded bar.

Answer

The bar shows \(\frac{3}{4}\). Point \(P=\frac{5}{8}\) and point \(Q=\frac{6}{8}\). Point \(Q\) matches the bar because \(\frac{3}{4}=\frac{6}{8}\).
5382083
Compare the two pie charts. 1) Which color has the largest slice in both charts? 2) Are the two charts divided in the same proportions? Explain using fractions of each whole.
Figure for problem 538208

Hints

- Find the total represented by each chart before naming any slice as a fraction. - Write each color's value over the total for its own chart. - Compare corresponding slices by asking whether they cover the same share of their wholes.

Solution

1. Red is the largest slice in both charts. 2. In a), the total is \(2 + 1 + 1 = 4\). The red, blue, and green slices are \(\frac{2}{4}\), \(\frac{1}{4}\), and \(\frac{1}{4}\). 3. In b), the total is \(4 + 2 + 2 = 8\). The corresponding slices are \(\frac{4}{8}\), \(\frac{2}{8}\), and \(\frac{2}{8}\). 4. The red slices both represent one half of their chart, and each smaller slice in b) is two eighths, the same amount of its whole as one fourth in a). Therefore, the charts have the same proportions.

Answer

1) Red is largest in both charts. 2) Yes. The corresponding slices represent the same fractions of their wholes: \(\frac{2}{4}=\frac{4}{8}\) and \(\frac{1}{4}=\frac{2}{8}\).
5382103

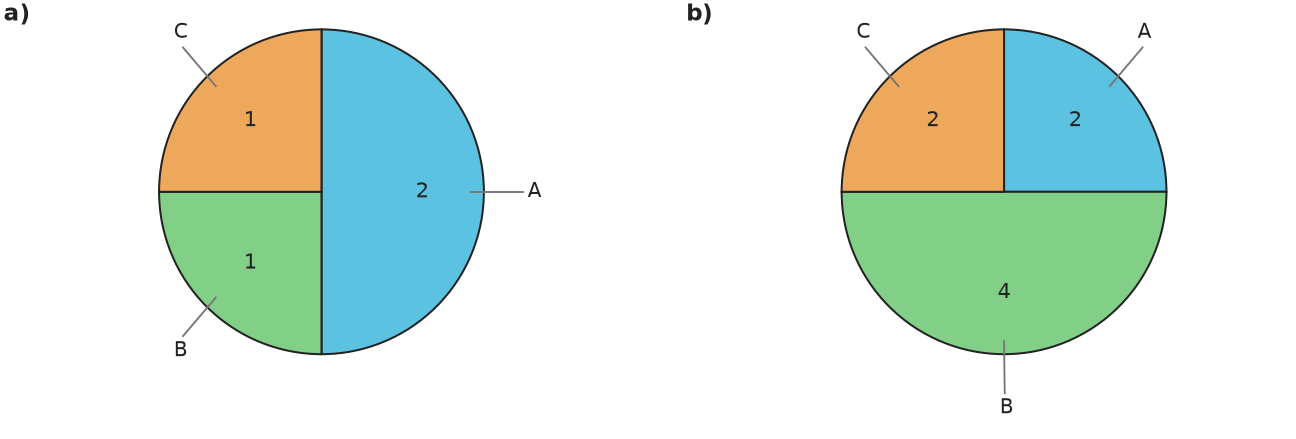

Section A has a value of \(2\) in both pie charts. Is its slice also the same size in both charts? Explain.
Figure for problem 538210

Hints

- The same section value can represent different fractions when the chart totals are different. - Find the total represented by each chart. - Write Section A as a fraction of each chart's own total before comparing the slices.

Solution

1. The total in a) is \(2 + 1 + 1 = 4\), so Section A is \(\frac{2}{4}\) of that whole. 2. The total in b) is \(2 + 4 + 2 = 8\), so Section A is \(\frac{2}{8}\) of that whole. 3. In a), Section A covers one half of the chart. In b), it covers one fourth of the chart. 4. Therefore, the slices are not the same size even though both sections have the same numerical value.

Answer

No. Section A is \(\frac{2}{4}\) of chart a) but \(\frac{2}{8}\) of chart b), so its slice is larger in chart a).
5401243
Use the bar model. Maya groups the eighth-size parts into \(4\) equal pairs to try to name the shaded amount with denominator \(4\). Can all the shaded eighths be grouped into complete pairs? Explain.
Figure for problem 540124

Hints

- Read the shaded fraction from the bar first. - Group the eighth-size parts into pairs. - Check whether every shaded eighth belongs to a completely shaded pair.

Solution

1. The bar has \(5\) of \(8\) equal parts shaded, so it shows \(\frac{5}{8}\). 2. Each pair of eighths makes one fourth of the bar. 3. Five shaded eighths make \(2\) complete shaded pairs, with \(1\) shaded eighth left over. 4. Therefore, the shaded amount cannot be named as a whole number of fourths.

Answer

No. Five shaded eighths make \(2\) complete pairs with \(1\) eighth left over, so \(\frac{5}{8}\) cannot be written as an equivalent fraction with denominator \(4\).
5401393
Use models a) and b). How many parts of model b) should remain unshaded so its shaded fraction is equivalent to model a)? State the shaded-fraction equivalence.
Figure for problem 540139

Hints

- Read the shaded and unshaded parts of model a). - Compare the size of one part in model a) with the smaller parts in model b). - Preserve the same unshaded length, then count how many parts of model b) are left shaded.

Solution

1. Model a) has \(3\) of \(4\) equal parts shaded, so \(1\) fourth is unshaded. 2. Model b) is divided into \(8\) equal parts. The same unshaded length occupies \(2\) of those eighths. 3. Therefore, \(2\) eighths should remain unshaded and \(6\) eighths should be shaded. 4. The shaded fractions are \(\frac{3}{4}=\frac{6}{8}\).

Answer

Model b) should have \(2\) eighths unshaded; the shaded equivalence is \(\frac{3}{4}=\frac{6}{8}\).
5401433
Use models a) and b). Only one change may be made. Which change makes the models equivalent? a) Add one shaded part to model b). b) Remove one shaded part from model a).
Figure for problem 540143

Hints

- First read the shaded fraction in each model. - Consider how each proposed one-part change affects the shaded length. - The correct change must make the two same-size bars end at the same shaded point.

Solution

1. Model a) shows \(\frac{2}{3}\), while model b) shows \(\frac{3}{6}\). 2. Adding one shaded part to model b) makes \(\frac{4}{6}\). 3. The shaded length of \(\frac{4}{6}\) matches the shaded length of \(\frac{2}{3}\), so choice a) works. 4. Removing one shaded third from model a) makes \(\frac{1}{3}\), which does not match \(\frac{3}{6}\).

Answer

a) Add one shaded part to model b), giving \(\frac{2}{3}=\frac{4}{6}\).
5401863
Use the number line. The longer tick marks divide the unit into fourths, and the shorter tick marks divide it into smaller equal spaces. Write the location of \(Q\) in fourths and in eighths. What fraction of one unit is each small space?
Figure for problem 540186

Hints

- Use the longer tick marks first to name \(Q\) in fourths. - Then count all of the smaller equal spaces in one whole unit. - Count how many of those smaller spaces reach from \(0\) to \(Q\).

Solution

1. Point \(Q\) is at the third fourth-size step from \(0\), so \(Q=\frac{3}{4}\). 2. There are \(6\) small equal spaces from \(0\) to \(Q\) and \(8\) such spaces in one whole unit. 3. Each small space is \(\frac{1}{8}\) of one unit, so \(Q=\frac{6}{8}\). 4. Therefore, \(\frac{3}{4}=\frac{6}{8}\).

Answer

\(Q=\frac{3}{4}=\frac{6}{8}\), and each small space is \(\frac{1}{8}\) of one unit.
5402003

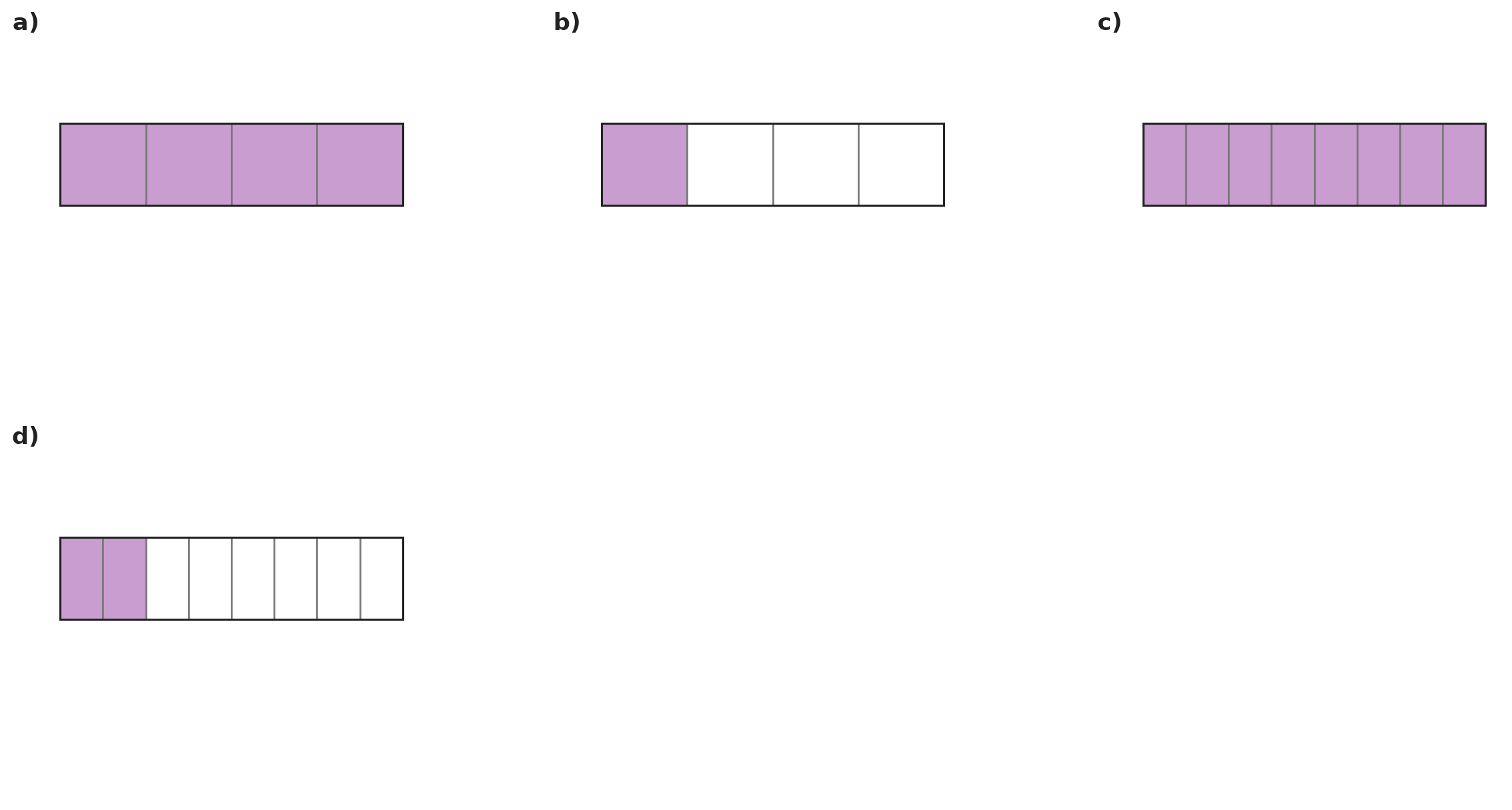

Bars a) and b) together form Model A. Bars c) and d) together form Model B. Each pair uses same-size whole bars. Write the fraction shown by each two-bar model and explain why the two amounts are equivalent.
Figure for problem 540200

Hints

- Count the shaded fourth-size parts across bars a) and b). - Count the shaded eighth-size parts across bars c) and d). - Compare how many eighth-size parts fit in one fourth-size part of the same-size whole.

Solution

1. In Model A, bar a) has \(4\) shaded fourths and bar b) has \(1\) shaded fourth, for \(\frac{5}{4}\). 2. In Model B, bar c) has \(8\) shaded eighths and bar d) has \(2\) shaded eighths, for \(\frac{10}{8}\). 3. Each fourth has the same size as \(2\) eighths. 4. Therefore, \(5\) fourths and \(10\) eighths have the same total size, so \(\frac{5}{4}=\frac{10}{8}\).

Answer

Model A shows \(\frac{5}{4}\), and Model B shows \(\frac{10}{8}\). They are equivalent: \(\frac{5}{4}=\frac{10}{8}\).
